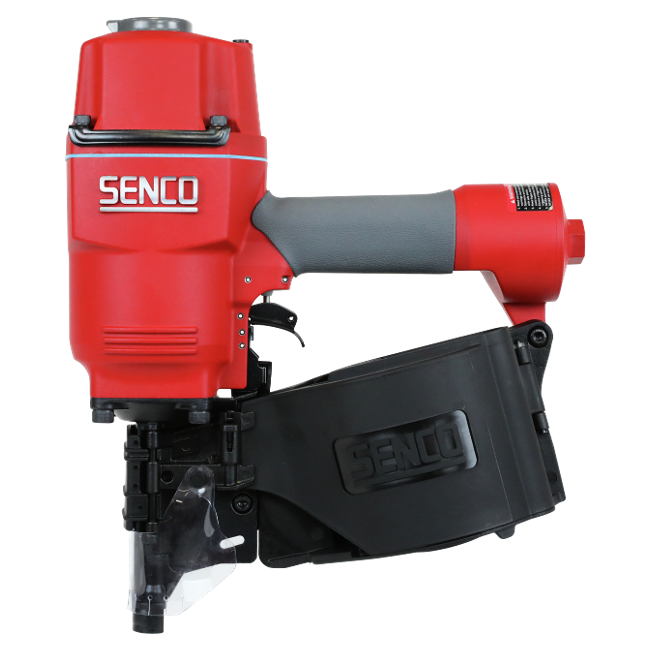

Senco Pallet Coil Nailer - PAL83
The Pal83 Heavy Duty coilnailer is designed and built for your toughest applications. Drives smooth, screw and ring coil nails.
SKU
S-PAL83
Toggle Nav
01772 824 870
Specifications
Identificaton
- Serie
- PalletPro
- Article number
- PAL83
- GTIN
- 8715274017532
- Type
- PAL83
Technical specifications
- Collation angle
- 16 °
- Wounding type
- Flat
- Oil free
- No
- Operating temperature
- -18 - 49 °C
- Collation type
- Wire collated
- Firing mode
- Dual
- Magazine capacity
- 300
- Shots / second
- 3
- Air inlet size
- 3/8" female
- Air consumption at 60 shots/minute
- 164.0 l/m
- Operating pressure
- 4.8 - 8.3 bar
- Sound pressure level
- 90.5 Lpa
- Sound power level
- 102.4 Lwa
- Vibration level
- 5.39 m/s2
Fastener specifications
- Type of nail
- Coilnails
- Smooth shank type
- Smooth shank
- Smooth shank nail length
- 38 - 83 mm
- Smooth shank nail diameter
- 2.3 - 3.8 mm
- Ring shank type
- Ring shank
- Ring shank nail length
- 38 - 75 mm
- Ring shank nail diameter
- 2.3 - 2.3 mm
- Screw shank type
- Screw shank
- Screw shank nail length
- 38 - 80 mm
- Screw shank nail diameter
- 2.3 - 3.1 mm
- Pitch min
- 8.0 mm
- Pitch max
- 8.0 mm
- Max outerdiamer coil
- 121 mm
Non-technical specifications
- Warranty
- 1 year
- Dimensions (DxWxH)
- 132 x 341 x 365 mm
- Includes case
- No
Logistical specifications
- Net weight
- 3.8 kg
