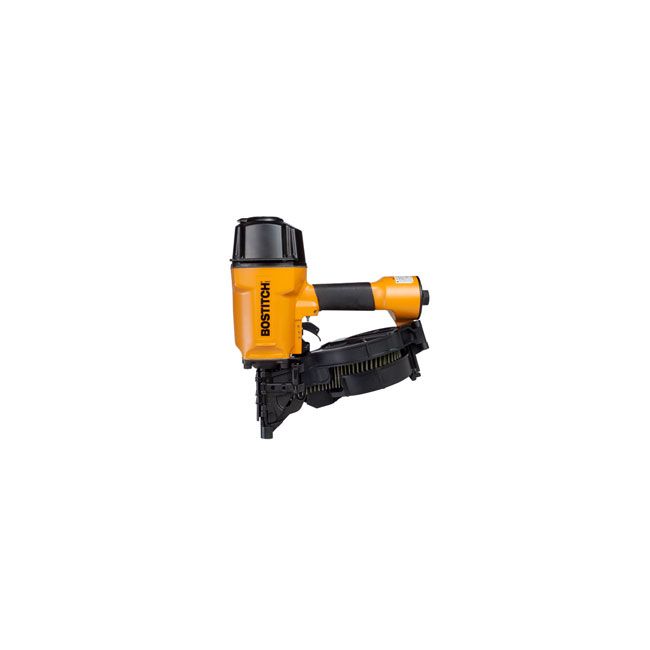

Coil Nailer-CT 90mm
- Magnesium Housing
- Adjustable Exhaust
- Contact Trip
- Steel Frame Protectors
- Compact Nose
| Power type | Pneumatic | |
|---|---|---|
| Weight | 3.86 kg | |
| Width | 140 mm | |
| Length | 306 mm | |
| Height | 336 mm | |
| Magazine capacity (max) | 225 | |
| F Series Fasteners: | ||
| Diameter (mm) | 2.5 (min) | 2.8 (max) |
| Length (mm) | 38 (min) | 90 (max) |
| Head (mm) | 6.5 (min) | 7.2 (max) |
| Collation angle | 15 | |
| Operating pressure | 4.9 - 7 BAR | ||
|---|---|---|---|
| 71 - 100 PSI | |||
| Air Consumption Ltr.per shot @ 5.6 bar | 2.04 | ||
| Air fitting thread type | 1/4 BSP | ||
| Noise | LPA 1sd | 85.9 | |
| LWA 1sd | 98.93 | ||
| LPA 1s, 1m | 90.18 | ||
| Vibration / Uncertainty | 3.198 / 1.6 m/s2 | ||
SKU
N8090CB-1ML-E
