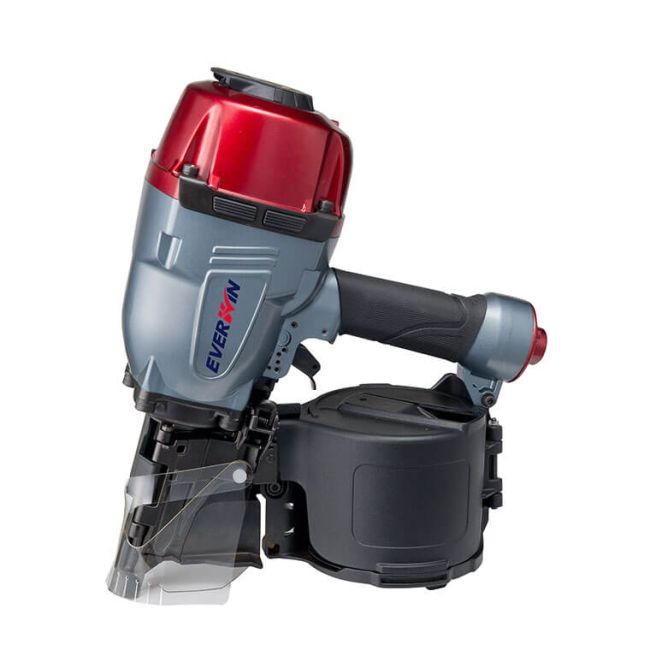

Industrial 90mm (3-1/2") Wire Coil Nailer

The PN90 Coil Nailer is designed to drive up to a 3-1/2" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
SKU
E-PN90

MANEUVERABLE YET POWERFUL

Supreme power-weight ratio

FLEXIBLE TRIGGER OPTIONS

Available with sequential trigger

HIGH SPEED OPERATION

Actuates up to 15 CYCLES/SECOND

HEAVY DUTY CONSTRUCTION

Geared for pallet and crate production

EXCLUSIVE COMPONENT TREATMENT

Special-treated driver and safety

ADJUSTABLE EXHAUST COVER

directs air exhaust away from the user for comfort

METAL NAIL TRAY

extremely reliable and wear-proof

  • Weight: 3.7 kgs (8.2 lbs)
  • Height: 350mm (13.8")
  • Width: 131mm (5.2")
  • Length: 302mm (11.9")
  • Operating Pressure: 5~8 bar (70~120 psi)
  • Driving Power (in-lbs @100psi): 1050
  • Air Consumption (L/cycle @90psi): 2.1 (4.4 cfm)
  • Type: 15 Degree Wire Collated Nails
  • Loading Capacity: 150 ~ 300
  • Shank Type: Smooth, Screw or Ring
  • Nail Length: 50~90mm (2"~3-1/2")
  • Nail Head Dia.: 6.5~7.7mm (0.256"~0.303")
  • Nail Shank Dia.: 2.5~3.8mm (0.099"~0.148")
