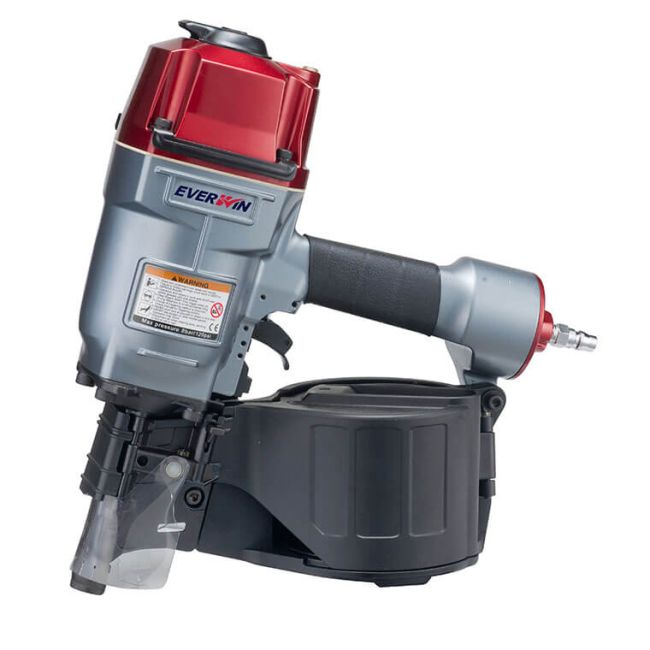

Industrial 80mm (3-1/4") Wire Coil Nailer

The PN80 Coil Nailer is designed to drive up to a 3-1/4" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
SKU
E-PN80

SUFFICIENT DRIVING ENERGY

Powerful for heavy duty applications

HIGH SPEED OPERATION

Actuates up to 15 CYCLES/SECOND

FLEXIBLE TRIGGER OPTIONS

Available with sequential trigger

EXCLUSIVE COMPONENT TREATMENT

Special-treated driver and safety

ADJUSTABLE METAL EXHAUST COVER

Boosts flexibility in a durable manner

METAL NAIL TRAY

Extremely reliable and wear-proof

METAL BODY PROTECTOR

Helps prevent drag and tear wear on the tool frame

  • Weight: 3.96 kgs (8.7 lbs)
  • Height: 362mm (14.2")
  • Width: 128mm (5")
  • Length: 307mm (12.1")
  • Operating Pressure: 5~8 bar (70~120 psi)
  • Driving Power (in-lbs @100psi): 837
  • Air Consumption (L/cycle @90psi): 1.8 (3.8 cfm)
  • Type: 15 Degree Wire Collated Nails
  • Loading Capacity: 225~300
  • Shank Type: Smooth, Screw or Ring
  • Nail Length: 50~83mm (2"~3-1/4")
  • Nail Head Dia.: 5.7~7.2mm (0.224"~0.283")
  • Nail Shank Dia.: 2.5~3.3mm (0.099"~0.131")
