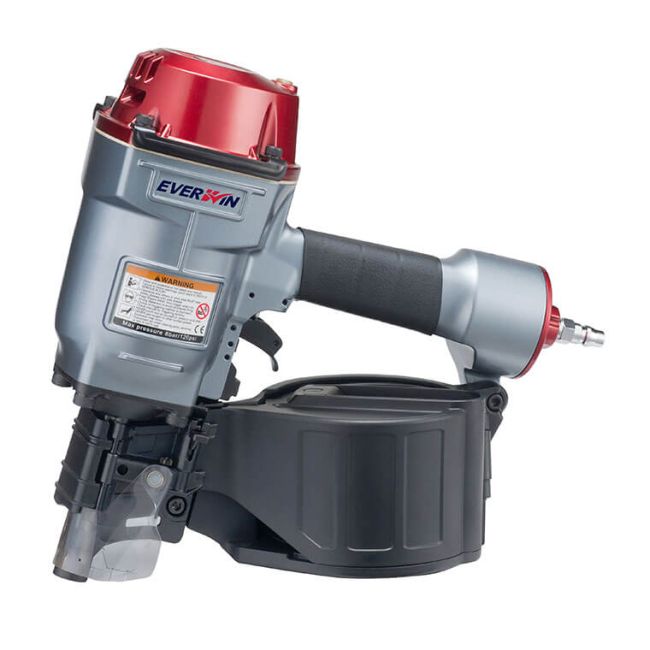

Industrial 70mm (2-3/4") Wire Coil Nailer

The PN70 Coil Nailer is designed to drive up to a 2-3/4" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
SKU
E-PN70

SUFFICIENT DRIVING ENERGY

Powerful for heavy duty applications

HIGH SPEED OPERATION

Actuates up to 15 CYCLES/SECOND /p>

FLEXIBLE TRIGGER OPTIONS

Available with sequential trigger

EXCLUSIVE COMPONENT TREATMENT

Special-treated driver and safety

SUFFICIENT DRIVING ENERGY

Powerful for heavy duty applications

DEPTH ADJUSTMENT ACCESSORY AVAILABLE

Optional heavy duty depth adjustable safety

METAL NAIL TRAY

extremely reliable and wear-proof

METAL BODY PROTECTOR

helps prevent drag and tear wear on the tool frame

  • Weight: 3.6 kgs (7.9 lbs)
  • Height: 315mm (12.5")
  • Width: 128mm (5")
  • Length: 306mm (12")
  • Operating Pressure: 5~8 bar (70~120 psi)
  • Driving Power (in-lbs @100psi): 780
  • Air Consumption (L/cycle @90psi): 1.7 (3.6 cfm)
  • Type: 15 Degree Wire Collated Nails
  • Loading Capacity: 225~300
  • Shank Type: Smooth, Screw or Ring
  • Nail Length: 45~70mm (1-3/4"~2-3/4")
  • Nail Head Dia.: 5.7~7.2mm (0.224"~0.283")
  • Nail Shank Dia.: 2.3~2.9mm (0.092"~0.113")
