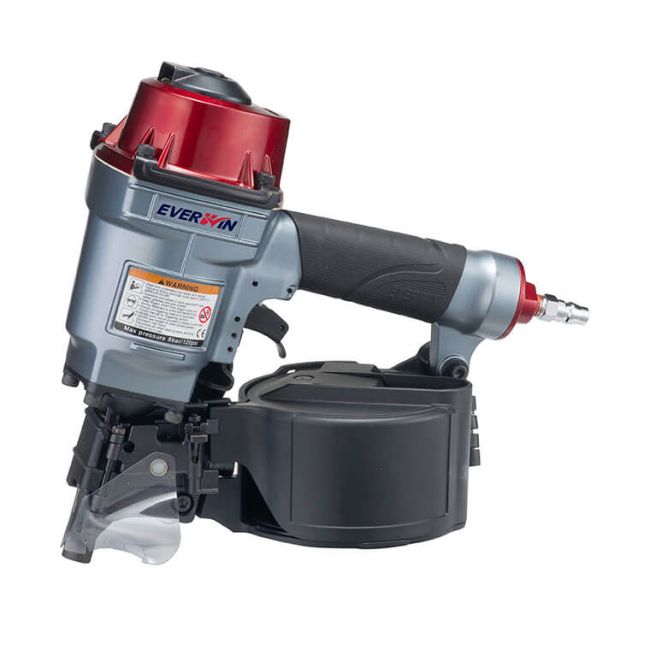

Industrial 57mm (2-1/4") Wire Coil Nailer

The PN57B Coil Nailer is designed to drive up to a 2-1/4" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
SKU
E-PN57B

SUFFICIENT DRIVING ENERGY

Powerful for heavy duty applications

HIGH SPEED OPERATION

Actuates up to 15 CYCLES/SECOND

FLEXIBLE TRIGGER OPTIONS

Available with sequential trigger

EXCLUSIVE COMPONENT TREATMENT

Special-treated driver and safety

ADJUSTABLE METAL EXHAUST COVER

boosts flexibility in a durable manner

DEPTH ADJUSTMENT ACCESSORY AVAILABLE

Optional heavy duty depth adjustable safety

METAL NAIL TRAY

extremely reliable and wear-proof

METAL BODY PROTECTOR

helps prevent drag and tear wear on the tool frame

  • Weight: 2.6 kgs (5.7 lbs)
  • Height: 283mm (11.1")
  • Width: 131mm (5.2")
  • Length: 270mm (10.6")
  • Operating Pressure: 5~8 bar (70~120 psi)
  • Driving Power
  • (in-lbs @100psi): 439
  • Air Consumption
  • (L/cycle @90 psi): 1.13 (2.39 cfm)
  • Type: 15 Degree Wire Collated Nails
  • Loading Capacity: 200-400
  • Shank Type: Smooth, Screw or Ring
  • Nail Length: 25~57mm (1"~2-1/4")
  • Nail Head Dia.: 5.0~5.7mm (0.197"~0.224")
  • Nail Shank Dia.: 2.1~2.3mm (0.083"~0.090")
