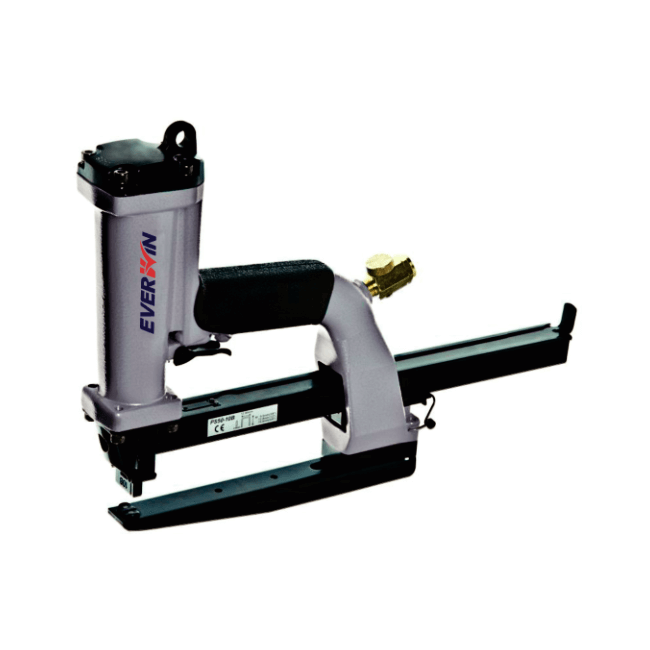

Industrial 16mm (5/8") SB103020 Carton Plier Stapler

Plier stapler PS Series is a line of heavy-duty plier stapler for professional users. Characteristic for these tools is their minimal noise, rapid stapling, low weight and good balance. The design of the anvil allows the material to be handled with care. Plier stapler Series PS is primarily intended for stapling of packaging such as packages, bags, sheets, sacks and various types of fabric, but is also ideal for such applications as industrial stapling and the joining of different materials.
SKU
E-PS50-10B

CURVED ANVILS AVAILABLE

For various applications

STANDARD EQUIPPED AIR-FLOW REGULATOR

Helps set staple driving depth on the go

POWERFUL SHUTTLE BLADE

Provides pre-compression

6"X1" HIGH THROAT

Provides flexibility

RAPID CYCLING ENGINE

Fast cycle time boosts efficiency

SPECIAL-TREATED CLINCH PLATE

Helps boost tool lifespan and minimize repair downtime

ROBUST GRAVITY CASTED FRAME

Provides unrivaled durability in class

  • Weight: 2.2 kgs (4.8 lbs)
  • Height: 240mm (9.4")
  • Width: 55mm (2.2")
  • Length: 370mm (14.6")
  • Operating Pressure: 2.5~3.9 bar (36~55 psi)
  • Driving Power (in-lbs @100psi): Clinch Type Tool N/A
  • Air Consumption (L/sec @90psi): 0.4 (0.85 cfm)
  • Type: Bostitch SB103020 Carton Staples
  • Loading Capacity: 100
  • Shank Type: Smooth
  • Staple Length: 10~16mm (3/8"~5/8")
  • Staple Crown Width: 12.95mm (1/2")
  • Staple Wire Dia.: 0.50x2.60mm (0.020"x0.103")
