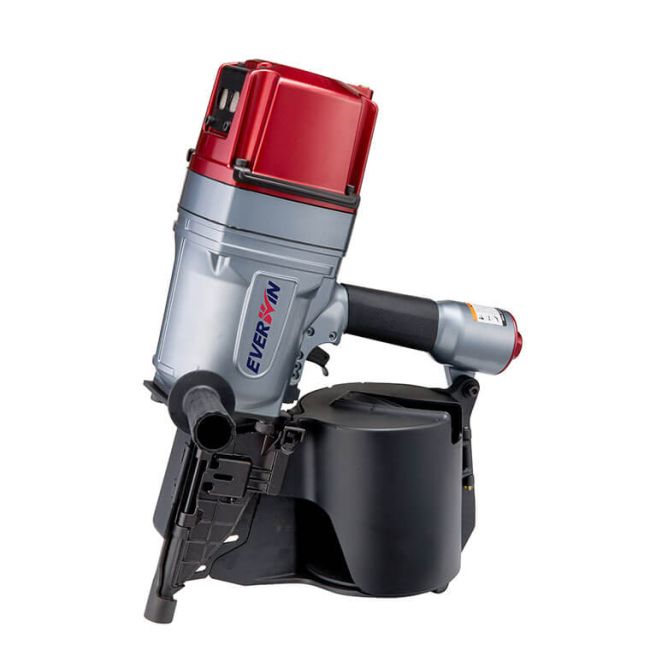

Industrial 130mm (5-1/8") Wire Coil Nailer

The PN130B Coil Nailer is designed to drive up to a 5-1/8" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
SKU
E-PN130B

SUFFICIENT DRIVING ENERGY

Powerful for heavy duty applications

AUX SIDE HANDLE

Shock-absorbent auxiliary side handle

FLEXIBLE TRIGGER OPTIONS

Available with contact fire trigger

HIGH SPEED OPERATION

Fast cycle time boosts efficiency

METAL NAIL TRAY

Extremely reliable and wear-proof

METAL BODY PROTECTOR

Helps prevent drag and tear wear on the tool frame

OVERALL STRUCTURE REINFORCED

Boosted lifespan from generation one PN130

  • Weight: 6.0 kgs (13.2 lbs)
  • Height: 467mm (18.4")
  • Width: 156mm (6.1")
  • Length: 338mm (13.3")
  • Operating Pressure: 5~8 bar (70~120 psi)
  • Driving Power (in-lbs @100psi): 1811
  • Air Consumption (L/cycle @90psi): 3.3 (7.0 cfm)
  • Type: 15 Degree Wire Collated Nails
  • Loading Capacity: 120 ~ 225
  • Shank Type: Smooth, Screw or Ring
  • Nail Length: 90~130mm (3-1/2"~5-1/8")
  • Nail Head Dia.: 7.5~8.6mm (0.295"~0.338")
  • Nail Shank Dia.: 3.3~3.8mm (0.131"~0.150")
