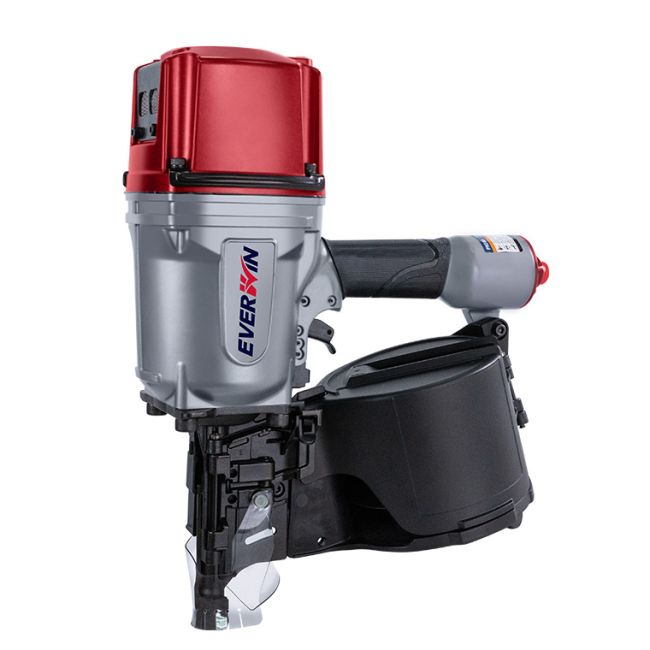

Industrial 100mm (4") Wire Coil Nailer

The PN100 Coil Nailer is designed to drive up to a 4" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
SKU
E-PN100

SUFFICIENT DRIVING ENERGY

Powerful for heavy duty applications

HIGH SPEED OPERATION

Fast cycle time boosts efficiency

OPTIONAL AUX SIDE HANDLE

Optional shock-absorbent auxiliary side handle

ROBUST DESIGN

For proven durability

OPTIONAL SAFETY & CONVENIENCE ACCESSORIES

Tool hanger & 3mm nose shroud available

METAL NAIL TRAY

extremely reliable and wear-proof

METAL BODY PROTECTOR

Helps prevent drag and tear wear on the tool frame

  • Weight: 5.5 kgs (12.1 lbs)
  • Height: 417mm (16.4")
  • Width: 156mm (6.1")
  • Length: 338mm (13.3")
  • Operating Pressure: 5~8 bar (70~120 psi)
  • Driving Power (in-lbs @100psi): 1470
  • Air Consumption (L/cycle @90psi): 3.2 (6.8 cfm)
  • Type: 15 Degree Wire Collated Nails
  • Loading Capacity: 200~300
  • Shank Type: Smooth, Screw or Ring
  • Nail Length: 65~100mm (2-1/2"~4")
  • Nail Head Dia.: 6.5~7.5mm (0.256"~0.295")
  • Nail Shank Dia.: 2.5~3.3mm (0.099"~0.131")
