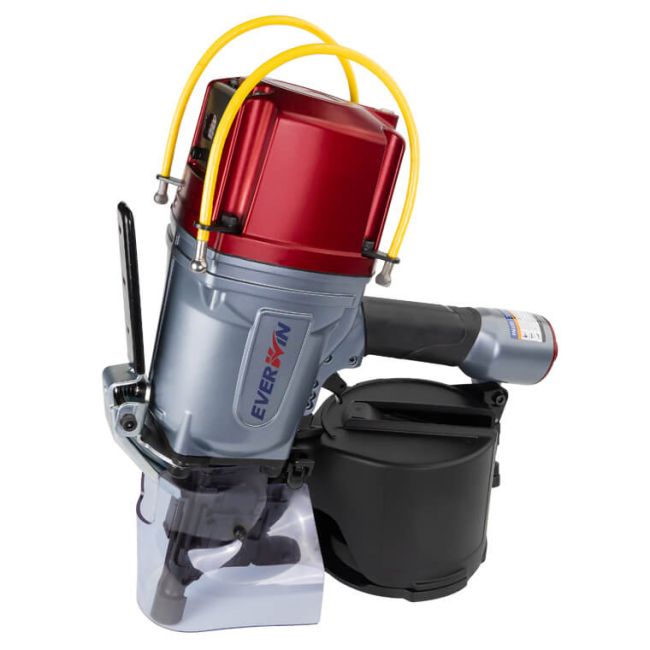

Industrial 100mm (4") Wire Coil Nailer Chep-Approved

The PN100CP Coil Nailer comes in CHEP-approved configuration and is designed to drive up to a 4" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
SKU
E-PN100CP

CHEP-APPROVED

Approved by chep corporate laboratory

HIGH SPEED OPERATION

Fast cycle time boosts efficiency

TOOL HANGER SET INCLUSIVE

Hang tools on spring balancers for gravity-free operation

ROBUST DESIGN

For proven durability

SECONDARY SAFETY HANDLE



METAL NAIL TRAY

Extremely reliable and wear-proof

METAL BODY PROTECTOR

Helps prevent drag and tear wear on the tool frame

  • Weight: 5.9 kgs (13 lbs)
  • Height: 417mm (16.4")
  • Width: 156mm (6.1")
  • Length: 370mm (14.5")
  • Operating Pressure: 5~8 bar (70~120 psi)
  • Driving Power (in-lbs @100psi): 1470
  • Air Consumption (L/cycle @90psi): 3.2 (6.8 cfm)
  • Type: 15 Degree Wire Collated Nails
  • Loading Capacity: 225
  • Shank Type: Smooth, Screw or Ring
  • Nail Length: 65~100mm (2-1/2"~4")
  • Nail Head Dia.: 7.2mm (0.283")
  • Nail Shank Dia.: 3.4mm (0.135")
