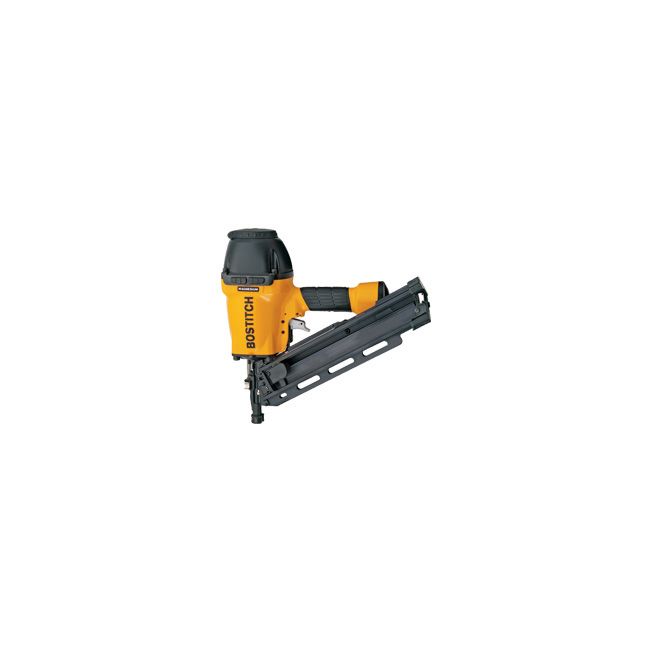

33 Degree Paper-Tape Stick Nailer -ST +Case
- Magnesium Housing
- Rubber Comfort Grip
- Serrated Tip
- No-Mar-Tip
- Dial-A-Depth
- Push Button Depth Control
- Sequential Trip
- Anti Slip Bumpers
- Compact Nose
- Carry Case
| Power type | Pneumatic | |
|---|---|---|
| Weight | 3.50 kg | |
| Width | 133 mm | |
| Length | 360 mm | |
| Height | 355 mm | |
| Magazine capacity (max) | 50 | |
| PT Series Fasteners: | ||
| Diameter (mm) | 2.5 (min) | 3.3 (max) |
| Length (mm) | 50 (min) | 90 (max) |
| Head (mm) | 6.8 (min) | 7.2 (max) |
| Collation type | Papertape | |
| Collation angle | 33 | |
| WW 33 Series Fasteners: | ||
| Diameter (mm) | 2.5 (min) | 3.3 (max) |
| Length (mm) | 50 (min) | 90 (max) |
| Collation type | Wire weld | |
| Collation angle | 33 | |
| Operating pressure | 4.80 - 8.30 BAR | ||
|---|---|---|---|
| 70.00 - 120.00 PSI | |||
| Air Consumption Ltr.per shot @ 5.6 bar | 2.47 | ||
| Air fitting thread type | 1/4 BSP | ||
| Noise | LPA 1sd | 90.80 | |
| LWA 1sd | 99.70 | ||
| LPA 1s, 1m | 86.70 | ||
| Vibration / Uncertainty | 3.026 / 1.513 m/s2 | ||
SKU
F33PTSM-E
