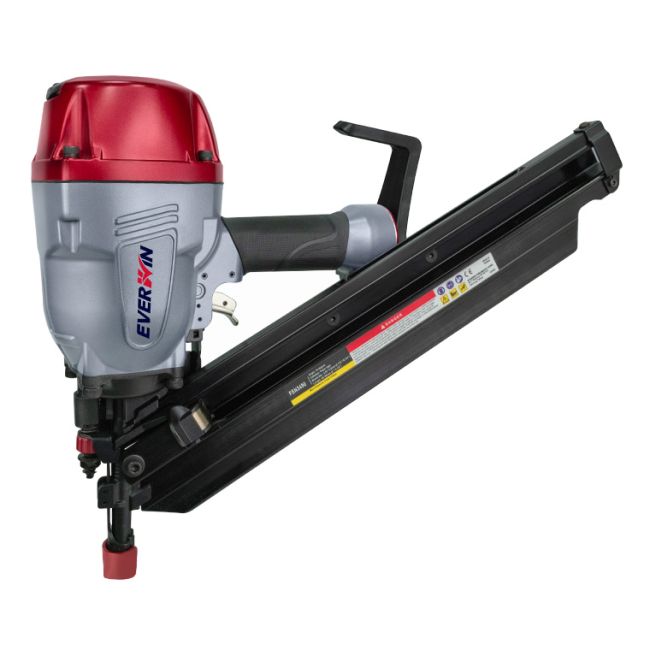

Construction 90mm (3-1/2") 34 Degree Paper Tape Collated Strip Framing Nailer

Powerful, fast, and built to last. The PTIA Award-Winning FSN3490-ST is the most powerful nailer in its class with comparable weight (8.2 lbs) to that of other brands. Perfect for high volume off-site construction and prefab applications, the FSN3490-ST’s boosted energy of 1,000 in-lbs makes it easier for users to sink nails on the first go even with cross laminated timber (CLT), which in turn saves time and increases efficiency. On top of that, it also features a hardened, metal exhaust cover and an all-metal magazine. These upgrades eliminate unnecessary damage from heavy usage and keep your tool running longer. The FSN3490-ST shoots a 34 Degree paper tape collated strip framing nail up to 90mm (3-1/2") in length.
SKU
E-FSN3490-ST

SUPERB DRIVING ENERGY

Most powerful nailer in its class

DURABLE MAGAZINE

Ductile all-metal magazine

DEPTH ADJUSTABLE

Tool-free depth adjustment

HIGH SPEED OPERATION

13 cycles/second

SERRATED CONTACT ARM

Hardened aggressive toenail safety

STANDARD SEQUENTIAL TRIGGER

Optional contact trip available

ULTRA-COMPACT NOSE

Allows clear line of sight

46MM WIDE RAFTER HOOK

  • Weight: 3.6 kgs (7.9 lbs)
  • Height: 335mm (13.2")
  • Width: 158mm (6.2")
  • Length: 467mm (18.4")
  • Operating Pressure: 5~8 bar (70~120 psi)
  • Driving Power (in-lbs @100psi): 1000
  • Air Consumption (L/cycle @90psi): 2.5 (5.3 cfm)
  • Type: 34 Degree Paper Tape Collated Nails
  • Loading Capacity: 90
  • Shank Type: Smooth, Screw or Ring
  • Nail Length: 50~90mm (2"~3-1/2")
  • Nail Head Dia.: 6.3~7.7mm (0.248"~0.303")
  • Nail Shank Dia.: 2.87~3.3mm (0.113"~0.131")
