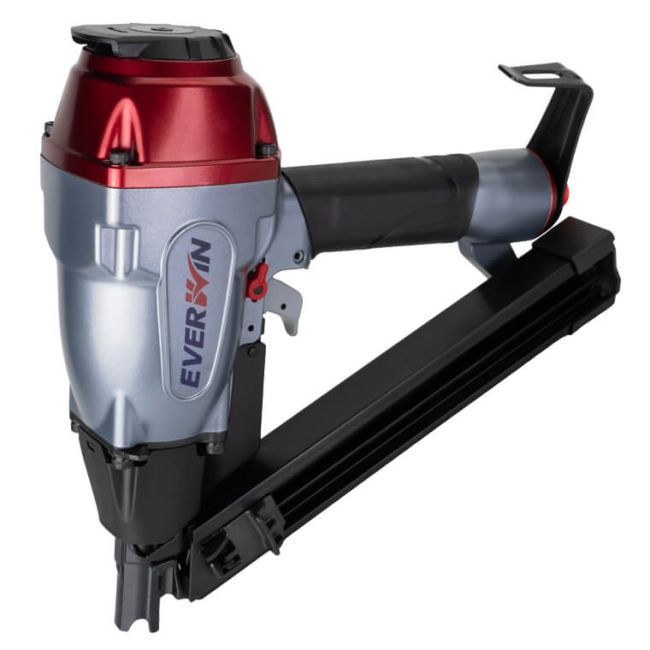

Construction 40mm (1-9/16") 34 Degree Positive Placement Joist Hanger Nailer

The MCN40B is a compact, dedicated 40mm (1-1/2 inch) positive placement metal connector nailer. Its innovative nosepiece design provides accurate nail placement into pre-punched metal connector holes. The MCN40B is constructed with durable, high-quality materials while still being lightweight and ergonomically balanced. The tool has the power to drive into the toughest substrates, including engineered lumber.
SKU
E-MCN40B

FULL MECHANICAL DESIGN

Boosts ease of maintenance

LOW NAIL LOCKOUT

Prevents dry fires

COMPACT DESIGN

Fits between 12" o.c. joists

ANTI NAIL BACK UP PAWL

Boosts operation stability

POWERFUL ENGINE

Sinks nails with consistency

ADJUSTABLE EXHAUST COVER

Directs air exhaust away from the user for comfort

ALUMINUM MAGAZINE

Offers balance for maneuverability

BELT HOOK

Rotatable all steel construction

  • Weight: 2.0 kgs (4.4 lbs)
  • Height: 275mm (10.8")
  • Width: 92mm (3.6")
  • Length: 298mm (11.7")
  • Operating Pressure: 5~8 bar (70~120 psi)
  • Driving Power (in-lbs @100psi): 486
  • Air Consumption (L/cycle @90psi): 1.8 (3.8 cfm)
  • Type: 34 Degree Paper Collated Nails
  • Loading Capacity: 33
  • Shank Type: Smooth, Screw or Ring
  • Nail Length: 38~40mm (1-9/16")
  • Nail Head Dia.: 7.01~7.36mm (0.276"~0.290")
  • Nail Shank Dia.: 3.3mm & 3.8mm (0.131" & 0.148")
